post	Resurrecting an old plotter	2019-02-23	true	plotter, art, python, hardware, recurse

I finally decided to give in to FOMO on #plottertwitter and bought an old plotter off ebay. Me being in batch at Recurse Center helped a lot, from the decision to get one to nerdsnipe Alex into collaberating with me. All of the work below is done with him.

What is a plotter anyway?

Plotters are graphics devices that can transfer vectors onto to a physical medium. Core mechanism of a plotter consists of an arm that can move pen in 2 axes (w.r.t the medium) and ability to put the pen "Down" (draw) and "Up", Versions of plotters exist where paper is replaced with other flat materials like vinyl or pen with a knife to make it a cutting plotter.

I like to think plotters as the naive solution to the problem that computers should be able to draw. Smaller, expensive memory chips (or magnetic cores) in earlier computers made working with raster images hard, and plotters didn't need much operating memory.

HP7440A

HP was on top of the plotter game when plotters were popular, so much that other manufacturers started to support HP-GL (short for HP Graphics Langauge) as the way to talk to their plotters as well.

HP7440A "ColorPro" was an affordable plotter manufactured by HP, it can hold and switch between 8 pens simultaneously and draw on surfaces as large as A4. HP Museum has a longer post about this plotter

Ours came pretty unscathed, with original manuals!

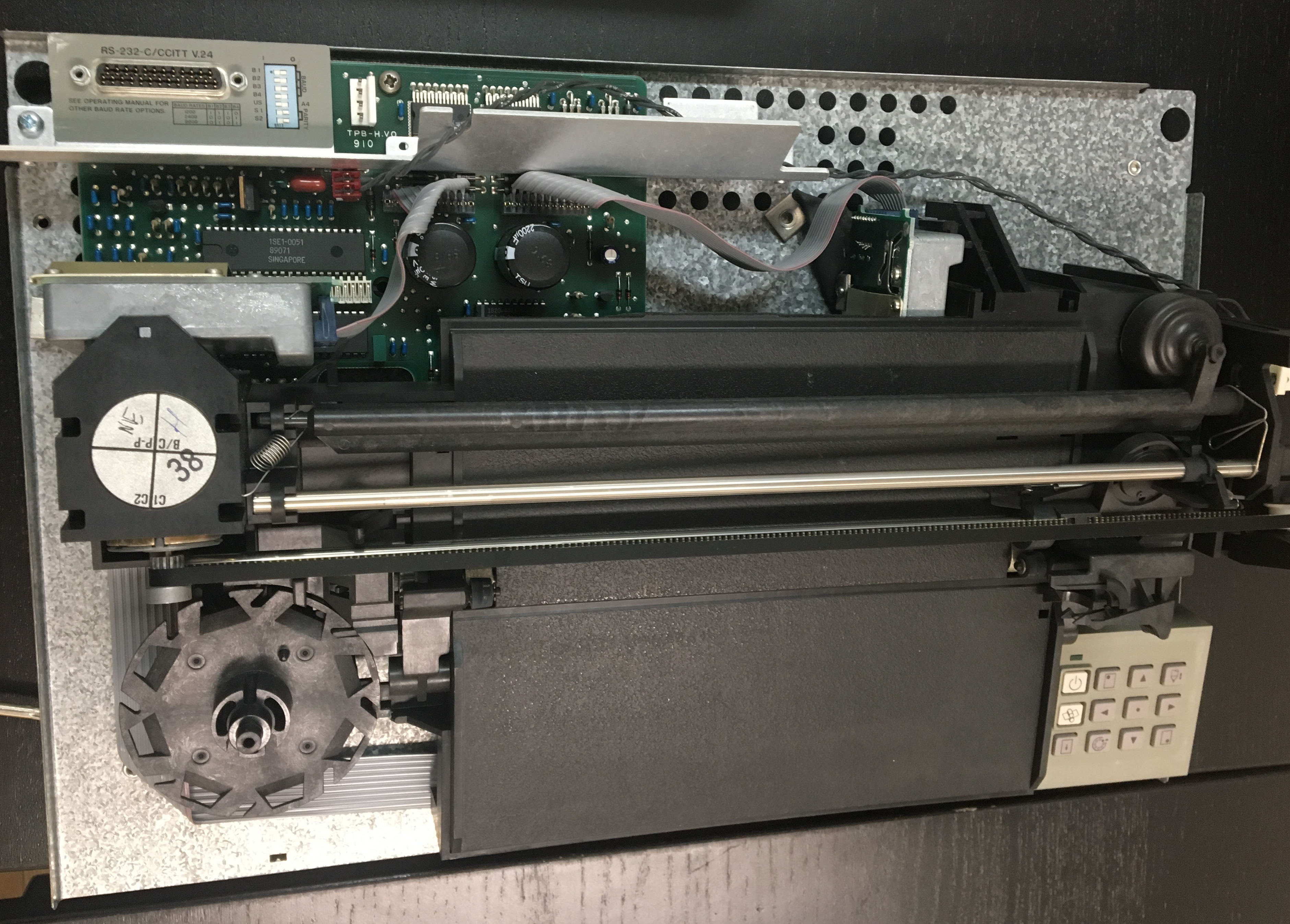

First thing we did was to open and clean it. I was quite surprised by how easy it is to open, take that 2018 tech!

{ width=600px }

Internal mechanism is pretty simple, There are two servos. One for moving paper back and forward, and one for moving the pen left and right. There is also a solenoid based lever to switch pen down and up.

Talk To Me

{ width=600px }

However, our plotter didn't come with any cables to either power it or to send commands.

Power supply was the biggest mystery. After digging through the manuals, and the hand drawn schematics from HP Museum, we managed to identify it to be a 10-0-10 AC to AC. Luckily someone was selling one in ebay, but we could've built one ourselves if not.

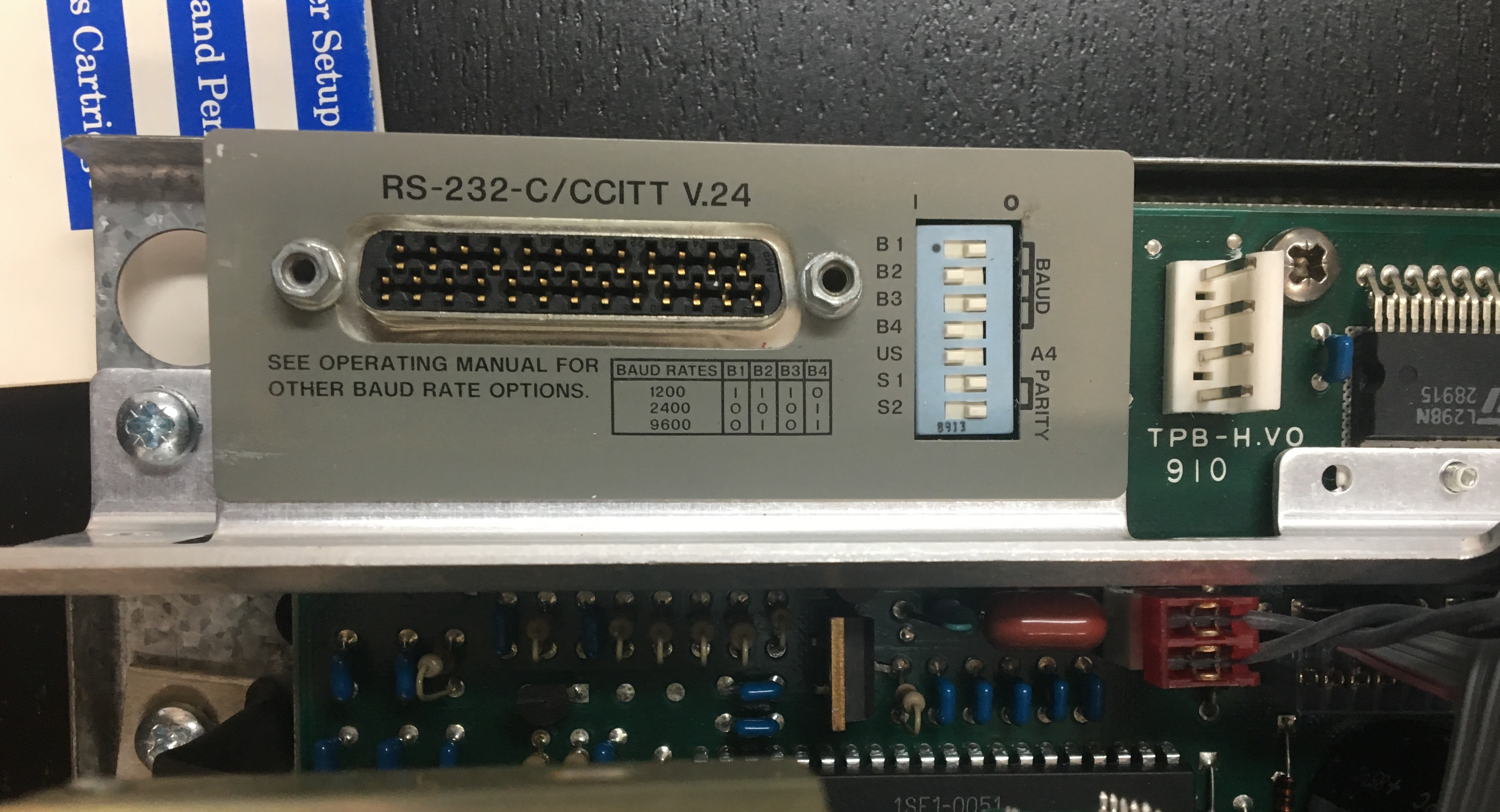

Communication turned out be just standard serial, however our plotter has a DB-22 adaptor, so we had to use a DB-22 to DB-9 adpator and then DB-9 to usb adaptor.

.. and finally our plotter moves!

Gooo faster.

HP7440A has a limited amount of buffer space (about 60 bytes), so if we send a longer command list to the interface, it will just drop bits after 60 and crash.

Our first naive solution was to add 1s sleep between sending subsequent commands, however this made drawings really slow and there was ink bleeding on the paper when the plotter is waiting for the next command.

Another recurser Francis pointed us at the wait function in hpgl.js.

It is a clever hack, the idea is to send the HPGL command OA as a marker, OA sends the current pen position back from plotter, so we batch a bunch of commands, append it with OA;, and as soon as we see the position on the line, we know that the current set is consumed and we can send the next batch again.

The code for it looks like this

import serial

# combine command together with maxlen buflen and expose as an iterator
def stitch(body, buflen=40):
    start = ["IN;PU;", "SP1;"]
    end = ["SP0;"]
    final = start + body + end

    ## read in 20 bytes at a time or boundary
    count = 0
    buf = []
    for ins in final:
        if count + len(ins) >= buflen:
            yield "".join(buf)
            buf = []
            count = len(ins)
        else:
            count += len(ins)
        buf.append(ins)

    # send rest of the code
    yield "".join(buf)

# cmds is a list with semicolon attached to the command
def exec_hpgl(cmds):
    port = "/dev/cuaU0"
    speed = 9600

    body = stitch(cmds)
    with serial.Serial(port, speed, timeout=None) as plt:
        for ins in body:
            # size (Esc-B) returns bufferlen
            plt.write(ins)
            # For block sent, end with OA, which reports back current
            # position on the pen
            plt.write("OA;")
            c = ""
            data = ""
            while c != '\r':
                c = plt.read()
                data += c
                print("read: {}".format(map(ord, c)))
            print("OA return: {}".format(data))
            # We got data, mean OA got executed, so the instruction buffer
            # is all consumed, ready to sent more.

This made the plotter super fast!!!

Everything's a line anyway!

After initial success we quickly realized our plotter does not respond to any commands that involved HP-GL instructions to draw basic geometry, like CI for circle.

A re-reading of the manual made us realize HP sold these functionality as an hardware adaptor board that plugs in the bottom, which we don't have.

But everything in computer graphics is a line anyway, right? With some root of unity math, we came up with a circle drawing routine.

This is only the beginning

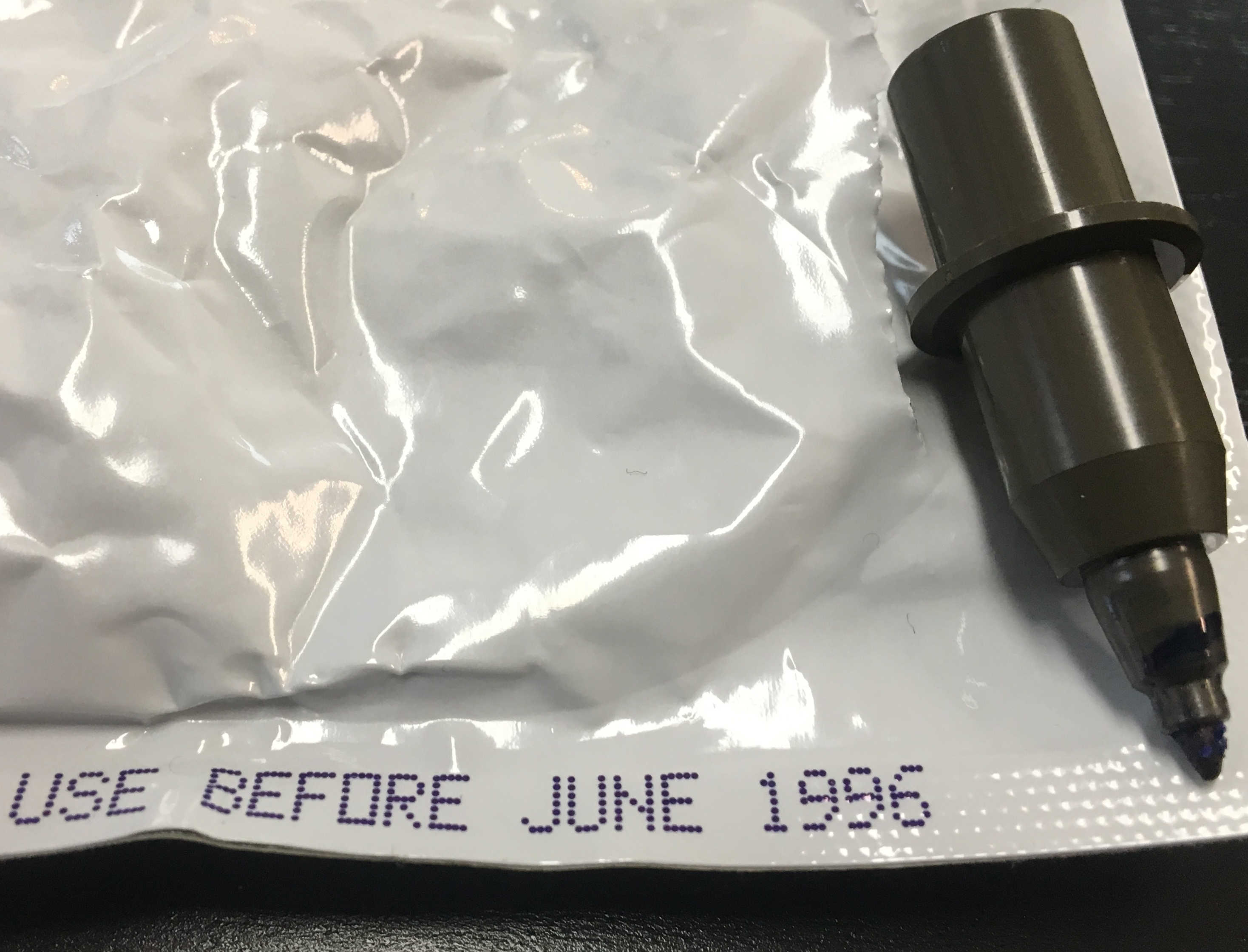

Hardware wise, only thing remaining to fix is our pens, which expired in 1996! We are yet to come up with a strategy to refill/replace them.

{ width=600px }

I am also going to leave this plotter at RC, so that other recursers can continue hacking on it, and get another one for me and actually do some generative art. :-)

Notes

1. Big thanks to Amy and Francis and Alex S for their help at various points.
2. All of our python code is here: https://github.com/dbalan/plotter-scripts
3. Thanks Tom for proof reading this post!
